Thickness：4+9A+4,4+12A+4,5+12A+5,6+12A+6,etc.
Place of Origin：Qinhuangdao, China
Structure：Solid
Shape：Flat
Insulated Glass
What Is Insulated Glass?
Insulated glass, also known as double glazing or IG, is a type of window pane that’s made up of two panes of glass separated by a layer of gas or vacuum. This gas acts as an insulator, reducing the amount of heat transfer between the inside and outside of the building. Insulated glass is often used in windows and doors to improve energy efficiency and reduce noise levels.
Advantages of Insulated Glass
1. Energy efficiency：One of the main advantages of insulated glass is its excellent energy efficiency. The two panes of glass are separated by a sealed air or plenum space that acts as an insulating barrier. This helps reduce heat transfer between the interior and exterior of the building, thereby improving insulation. Insulated glass helps keep indoor spaces warm in winter and cool in summer, reducing reliance on heating and cooling systems and reducing energy consumption.
2. Noise reduction：Insulated glass has excellent sound insulation properties. The air or gas-filled space between the glass panes acts as a buffer, reducing the transmission of sound waves. This helps create a quieter, more comfortable indoor environment, especially in areas with higher noise levels, such as busy roads or near airports.
3.Condensation control：Insulated glass helps control condensation on the inner surface of the glass. Thermal barriers between glazing reduce the temperature difference between the indoor and outdoor surfaces of the glazing, thereby minimizing the formation of condensation. This helps maintain a clear view and prevent moisture-related problems, such as mold growth or window frame damage.
4. UV protection：Insulated glass provides enhanced protection against harmful ultraviolet (UV) rays. Glass panels can be coated with a low-emissivity (low-e) coating, which helps block most UV radiation. This helps protect furniture, floors, and other interior elements from fading or damage caused by long-term exposure to UV rays.
5. Enhance security：Insulated glass can provide greater security than single glazing. Multiple layers of glass and sealed air or plenum spaces make it more difficult for intruders to break through. Additionally, laminated or tempered glass can be used to construct insulated glass units to provide a higher level of security and resistance to forced entry.
6.Aesthetic choices：Insulated glass offers a wide range of aesthetic options to suit different architectural styles and design preferences. Glass panels can be customized with various coatings, tints or patterns to achieve specific visual effects or privacy requirements. This allows for greater design flexibility and creativity in building projects.
-

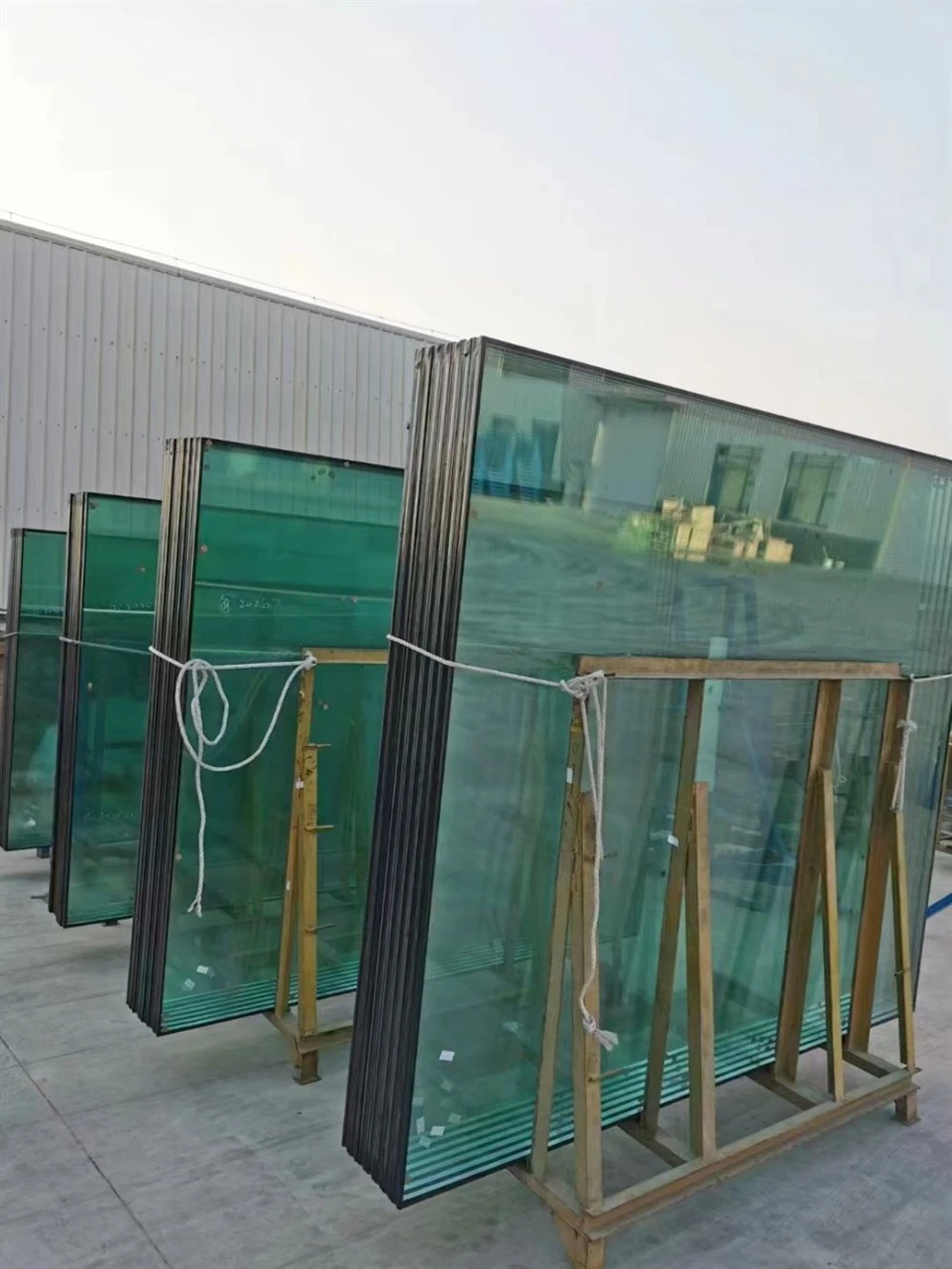

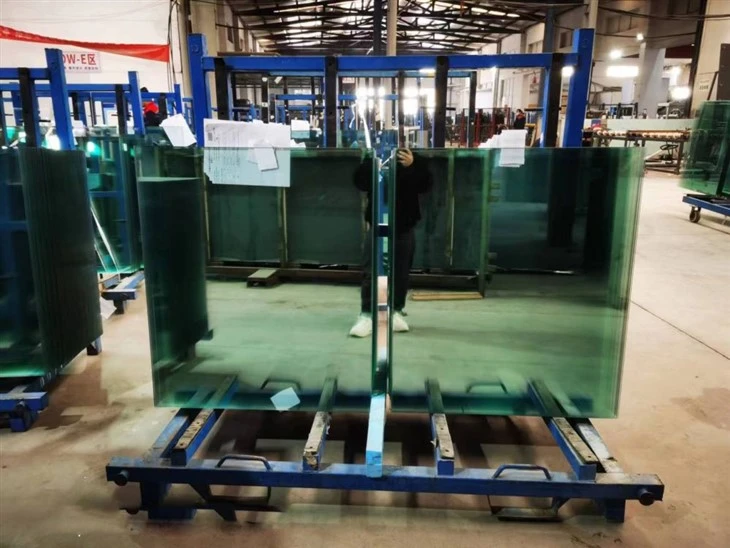

![Double Pane Insulated Glass]()
-

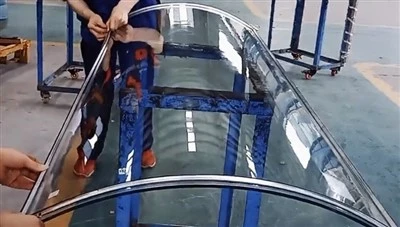

![6mm Curved Insulated Glass]()
6mm Curved Insulated GlassProduct：6mm curved insulated glassread more
Thickness：4-19mm
Place of Origin：Qinhuangdao, China
Structure：Solid -

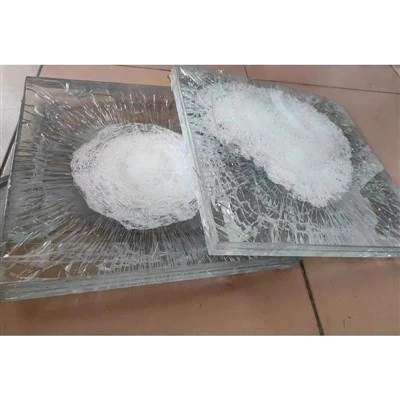

![Bullet Resistant Insulated Glass]()
Bullet Resistant Insulated GlassProduct：Bullet resistant insulated glassread more
Thickness：25-28mm
Place of Origin：Qinhuangdao, China
Structure：Solid -

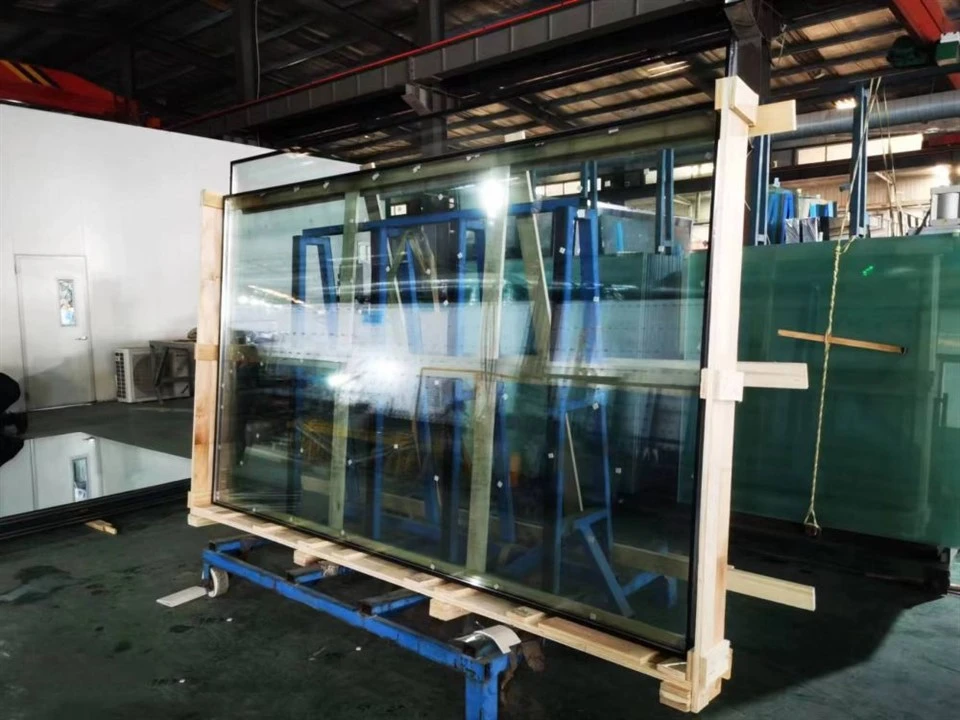

![Triple Insulated Glass]()
Triple Insulated GlassThickness：16-22mmread more
Place of Origin：Qinhuangdao, China
Structure：Solid
Shape：Flat
Why Choose Us
01/
High quality
Our products are manufactured or executed to very high standards, using the finest materials and manufacturing processes.
02/
Competitive Price
We offering a higher-quality product or service at an equivalent price. As a result we have a growing and loyal customer base.
03/
Rich experience
Our company has many years of production work experience. The concept of customer-oriented and win-win cooperation makes the company more mature and stronger.
04/
Global shipping
Our products support global shipping and the logistics system is complete, so our customers are all over the world.
05/
After-sale service
Professional and thoughtful after -sales team, let you worry about us after -sales Intimate service, strong after -sales team support.
06/
Advanced equipment
A machine, tool or instrument designed with advanced technology and functionality to perform highly specific tasks with greater precision, efficiency and reliability.
Types of Insulated Glass
Single layer insulating glass
The most basic type consists of two panes of glass separated by a spacer. This configuration provides modest improvements in thermal insulation compared to single-pane windows.
Sealed insulating glass
With the exception of the two panes of glass and gaskets, all edges of this type are sealed to prevent air infiltration and condensation. It provides enhanced thermal insulation properties and reduces noise levels.
Low-emissivity (Low-E) coated glass
This type contains one or more pieces of glass with a low-e coating that reflects heat back to its source. It can be tinted to control sunlight or transparent, providing superior energy efficiency.
Argon or krypton filled glass
These IGUs are filled not with air but with an inert gas that has a higher thermal resistance. Argon is common because it is affordable and provides about 15-25% more insulation than air. Krypton offers better performance but costs more.
Triple glazing
This type adds an extra pane of glass to the insulated unit, further enhancing the insulation. Triple glazing is particularly useful in extremely cold climates or for very compact window sizes, where the additional weight and thickness are manageable.
Soundproof glass
Specialized insulated glass units (IGUs) are designed to reduce noise transmission. These units typically feature laminated glass with air-tight, soundproofing material filled between the glass.
Self cleaning glass
Some insulating glass features self-cleaning technology, such as a titanium dioxide coating that breaks down organic matter when exposed to sunlight. This feature simplifies maintenance and extends the life of the glass.
Spacer system
Spacers are components that maintain space between glass panes. Traditional metal gaskets conduct heat, but warm edge gaskets are made from less thermally conductive materials to increase thermal efficiency.
Application of Insulated Glass
Doors and windows
Insulated glass is widely used in doors and windows and has excellent energy saving, sound insulation, and UV protection functions. It can help reduce heat loss and heat gain, maintain comfortable indoor temperatures, and reduce noise levels.
Greenhouse
Insulated glass is commonly used in greenhouses to provide a controlled environment for plants. It can help capture heat and reduce heat loss, maintaining a suitable temperature for plant growth. Additionally, it blocks UV rays and protects plants from damage.
Skylight
Skylights use insulated glass to allow natural light into the building while reducing heat gain. It provides excellent insulation properties, reducing the need for artificial lighting and energy consumption.
Partition wall
Partition walls can use insulated glass to provide privacy while still allowing natural light to pass through. It also reduces noise levels between rooms, creating a more comfortable and quiet environment.
Display
Insulated glass is used in displays such as museum exhibits and retail displays. It protects items from UV radiation, reducing fading and damage. Additionally, it provides a clear and distortion-free view of the displayed items.
Buildings
Insulated glass is used in the construction of buildings to increase energy efficiency and reduce heating and cooling costs. It also provides better sound insulation, creating a quieter and more comfortable indoor environment.
Material of Insulated Glass
1.Glass plate
The basic element of insulating glass is the glass pane itself. These can be made from various types of glass, including float, tempered or laminated glass, each with different properties such as increased strength or UV protection. The number of panes can vary from two for standard double glazing to three or more for enhanced triple glazing solutions.
2. Spacer system
There are spacers between the glass panes that serve a variety of purposes. Its main function is to create a uniform gap between the glass layers. The gasket must be rigid enough to maintain this distance under thermal stress while being resistant to environmental factors. Warm edge gaskets made from low thermal conductivity materials are becoming increasingly popular because they reduce heat transfer and improve overall performance.
3.Sealing material
To ensure the integrity of an insulated glass unit, it must be sealed on all sides to prevent air and moisture penetration. Use a sealant (usually silicone or polyurethane) to create an airtight seal. The quality of the sealant is critical as it directly affects the device's ability to withstand temperature fluctuations and resist condensation.
4.Inflate
The spaces between the glass panes are usually filled with an inert gas such as argon or krypton. These gases have a higher molecular weight than air and therefore provide better insulation by reducing convection within the cavity. This gas filling enhances the insulating capabilities of the insulated glass unit without significantly increasing its thickness or weight.
5. Low-emissivity (Low-E) coating
Some insulated glass units have a low-e coating on one or more interior surfaces. These coatings are very thin and reflect long-wave radiation (heat from buildings) while allowing short-wave radiation (heat from the sun) to pass through. This selective emissivity helps keep indoor temperatures constant by minimizing heat loss during cold weather and suppressing solar heat gain during hot weather.
6. Sound insulation properties
For applications where noise reduction is required, certain components of the insulated glass unit can be optimized. Laminated glass has a plastic interlayer between two layers of glass that dampens sound vibrations. In addition, gasket configuration and gas filling selection can also affect sound insulation performance.
Can Insulated Glass Be Recycled
Of course, insulated glass can be recycled! Recycling insulated glass is an important part of sustainable building practices and helps reduce waste and conserve resources.Insulated glass is made up of two or more panes of glass separated by a layer of gas or vacuum. This gas or vacuum provides insulation, reducing heat transfer and improving energy efficiency. The glass itself is made from sand, soda ash, limestone, and other materials.When insulated glass needs to be replaced or discarded, it can be recycled along with other glass products. The recycling process involves crushing the glass into small pieces, which are then sorted by color and type. The sorted glass is then melted down and used to manufacture new glass products.Recycling insulated glass has several benefits. First, it reduces the amount of waste going to landfills. Glass takes up a lot of space in landfills and can take hundreds of years to break down. By recycling glass, we can reduce the amount of waste in landfills and conserve valuable space.
How to Maintain Insulated Glass
Regular cleaning
Insulated glass should be cleaned regularly to remove dirt and debris that may have accumulated on the surface. Use a soft cloth or sponge with mild detergent and water to clean the glass. Avoid using abrasive cleaners or tools that may scratch the surface.
Avoid collisions
Insulated glass is fragile and can be easily damaged by impact. Therefore, it should be handled with care to avoid hitting or dropping heavy objects on it.
Avoid extreme temperatures
Insulating glass should be protected from extreme temperatures, such as direct sunlight or exposure to extreme cold. Extreme temperatures can cause glass to expand or contract, which can lead to cracking or damage.
Repair damaged glass promptly
If the insulating glass is damaged, it should be repaired or replaced in time to avoid further damage. Damaged glass may lose its insulating properties and become a safety hazard.
Regular inspection
Insulating glass should be inspected regularly to ensure it is functioning properly. Check the seals or frame for cracks, leaks or damage. If any problems are discovered, they should be resolved promptly to avoid further losses.
Professional installation and maintenance
Insulating glass should be installed and maintained by professional contractors with the necessary skills and experience. Improper installation or maintenance may result in glass damage or reduced performance.
How to Choose the Insulated Glass Correctly
Insulation performance
The thermal insulation performance of insulating glass is an important factor to consider. Look for glass with a lower U-value (thermal conductivity), which indicates better insulating properties. The lower the U-value, the better the glass' ability to prevent heat transfer.
Sound insulation performance
If good sound insulation performance is required, insulating glass with a higher sound insulation coefficient (Rw) should be selected. The higher the Rw value, the better the glass's ability to reduce noise transmission.
Transparency
Insulated glass is available in different transparency levels, from clear to opaque. Consider your desired level of transparency based on your intended use and privacy requirements.
Security
Insulating glass should meet safety standards to ensure its durability and impact resistance. Look for tempered or laminated glass for added strength and security.
UV protection
If you are concerned about UV radiation, choose insulated glass with a UV protective coating. This reduces the amount of UV radiation that passes through the glass, protecting furniture, floors and other interior items from damage.
Durability
Insulated glass should be durable and resistant to fading, scratching and impact. Look for glass with a scratch-resistant coating or tempered glass for added durability.
Energy efficiency
Insulated glass can help improve energy efficiency by reducing heat loss and heat gain. Consider choosing glass with a low-e coating, which reflects heat back into the room in the winter and blocks heat from entering in the summer.
Brand reputation and warranty
Choose a reputable brand with a good warranty to ensure the quality and performance of the insulating glass.
What Is the Difference Between Single Glazing and Insulated Glass
Single glazing refers to windows composed of a single pane of glass. Historically, this was the most common form of window due to its simplicity and cost-effectiveness. Single-glazed units offer good transparency and natural light transmission, but they have limited insulation properties. Heat easily passes through a single pane of glass, leading to increased energy consumption in heating and cooling systems. Additionally, single glazing provides minimal sound insulation and is more susceptible to damage from the elements compared to insulated glass.On the other hand, insulated glass units (IGUs) consist of two or more glass panes separated by a spacer and hermetically sealed to create a sealed air space between them. This configuration offers significant improvements in thermal efficiency compared to single glazing. The presence of the air space and the use of low-emissivity (low-E) coatings can reflect heat back into the room in the winter and keep it out in the summer, thereby reducing energy costs. Insulated glass also provides enhanced acoustical performance by absorbing sound waves and reducing noise penetration. Furthermore, IGUs generally exhibit better resistance to wind, rain, and hail, making them a more durable choice for a variety of climates and conditions.The choice between single glazing and insulated glass depends on several factors, including climate, budget, energy efficiency requirements, and desired levels of insulation and soundproofing. In regions with extreme temperatures or where energy conservation is a priority, insulated glass is typically the preferred option. Conversely, in milder climates or for projects with cost constraints, single glazing might suffice.
Precautions for Using an Insulated Glass
Avoid collisions
Insulated glass is fragile and should be handled with care to avoid impact or damage. Do not hit or drop heavy objects on the glass surface, as this may cause the glass to crack or break.
Avoid extreme temperatures
Insulated glass should not be exposed to extreme temperatures, such as direct sunlight or extreme cold. Extreme temperatures can cause glass to expand or contract, leading to cracking or damage.
Avoid chemical contact
Insulated glass should not come into contact with chemicals such as acids or alkalis. Chemical exposure may cause corrosion or damage to the glass surface.
Avoid moisture
Insulating glass should be kept dry and not exposed to moisture or water. Moisture may cause the glass to fog up or lose its insulating properties.
Regular inspection
Insulated glass should be inspected regularly to ensure it is in good condition. Check for cracks, chips, or other damage, and repair or replace damaged glass promptly.
Professional installation
Insulating glass should be installed by a professional contractor with the necessary skills and experience. Improper installation may damage the glass or reduce its insulating properties.
How to Install Insulated Glass
1
Prepare tools and materials: Before installing insulating glass, you need to prepare necessary tools and materials, including glass knives, glass tools, sealant, and silicone sealant.
2
Measure and cut: Use a glass cutting machine to measure and cut the insulating glass to the required size. Please be sure to measure accurately to ensure a good fit.
3
Clean the installation area: Before installing insulating glass, clean the installation area to remove dirt, dust and debris. This will help ensure a strong bond between the glass and frame.
4
Install the glass: Carefully place the insulating glass into the frame. Use a glass tool to hold the glass in place. Make sure the glass is level and straight.
5
Apply sealant: Apply sealant around the perimeter of the glass to create a weatherproof seal. Use a caulk gun to apply the sealant evenly and smoothly.
6
Allow sealant to cure: Allow sealant to cure according to manufacturer's instructions. This may take several hours or days, depending on the type of sealant used.
7
Cleanup: After the sealant has cured, use a putty knife or scraper to clean off excess sealant.
What Are the Trends and Development Directions of Insulated Glass in the Market
Energy saving and environmental protection
As awareness of energy conservation and environmental protection continues to increase, the energy-saving performance of insulating glass will become a key factor affecting its market demand. The development direction of insulating glass will tend towards higher energy-saving performance, such as the use of Low-E coating, argon filling and other technologies.
Intelligence
With the continuous development of smart buildings, the intelligence of insulating glass will also become a trend. For example, insulating glass can be integrated with sensors, controllers and other equipment to achieve automatic temperature control, automatic sunshade, energy management and other functions.
Lightweight and high strength
In order to reduce the weight of the building and improve its seismic performance, the lightweight and high strength of insulating glass will also become a development direction. For example, the weight of insulated glass can be reduced by using thin glass and lightweight frames.
Multifunctional
In order to meet the different needs of buildings, the multifunctionalization of insulating glass will also become a development direction. For example, insulating glass can have functions such as sound insulation and antibacterial, improving the comfort and health of the building.
Green building materials
As the awareness of sustainable development continues to increase, the use of green building materials will also become a trend. Insulated glass can be made from recycled materials and environmentally friendly paints to reduce its environmental impact.
Our Factory
HUAYOU GLASS CO.,LTD. is a professional supplier of glass in China with more than 15 years. We mainly export glass and its deep-processing products to North America, South America, Africa, Asia and more than 50 countries. And It has passed ISO, SGS certificates, to meet the different quality standard requirements of different countries.
